G Screen for Gen 3 Dual Battery Systems Genesis Offroad


Price:
Sale price$289.00

Description



G Screen Monitoring System

for Gen 3 dual battery systems


Keep an eye on the status of your dual battery system

Monitors voltage levels of both batteries.
Remote status indicator - shows if the batteries are connected or disconnected.
Remote boost button - jump start the engine from inside the cab if your cranking battery is dead.


Background changes color to visually show your battery status at a glance

  • Green - both batteries are fully charged, and they are connected together
  • Yellow - the batteries are below 12.7v, and they are disconnected
  • Red - at least 1 battery is below 12v. The screen will blink red a few times per minute to get your attention

Background light turns off after 45 seconds of inactivity

  • Preserves battery power
  • No glare while driving at night
  • Voltage and status is still visible, but without the backlighting





Main Battery Voltage

Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.




Aux Battery Voltage

Holding this screen down for 3 seconds will turn off the screen. Tap once to turn the screen back on.



Status Screen:

AUTO mode - the system will automatically connect / disconnect the batteries based on the voltage levels

AUTO OFF - the batteries are isolated from each other

AUTO ON - the batteries are connected together



Hold screen down for 3 seconds to access the Boost menu

When the background turns white, tap the screen to cycle through the menu

Stop tapping to select the desired mode




Selecting Boost On will manually connect the batteries together

Use this to jump start from the second battery if your main battery is too low to start the engine

They will remain connected until you select Boost Off or Auto mode

NOTE all electrical circuits in the vehicle will run from both batteries in this mode



Selecting Boost Off will manually separate the batteries

They will remain separated until you select Boost On or Auto mode

NOTE your Aux battery will not be charged by the alternator while in this mode




Selecting Auto On will set the system to Automatic mode






This screen shows the air pressure in your on-board air tank

if you have the optional Digital Air Pressure Sensor kit installed

Without the sensor installed, this screen will not be displayed



This screen shows the firmware version

Holding this screen down for 3 seconds will enter the contrast adjustment menu,

allowing you to tap through 5 levels of contrast for optimal viewing

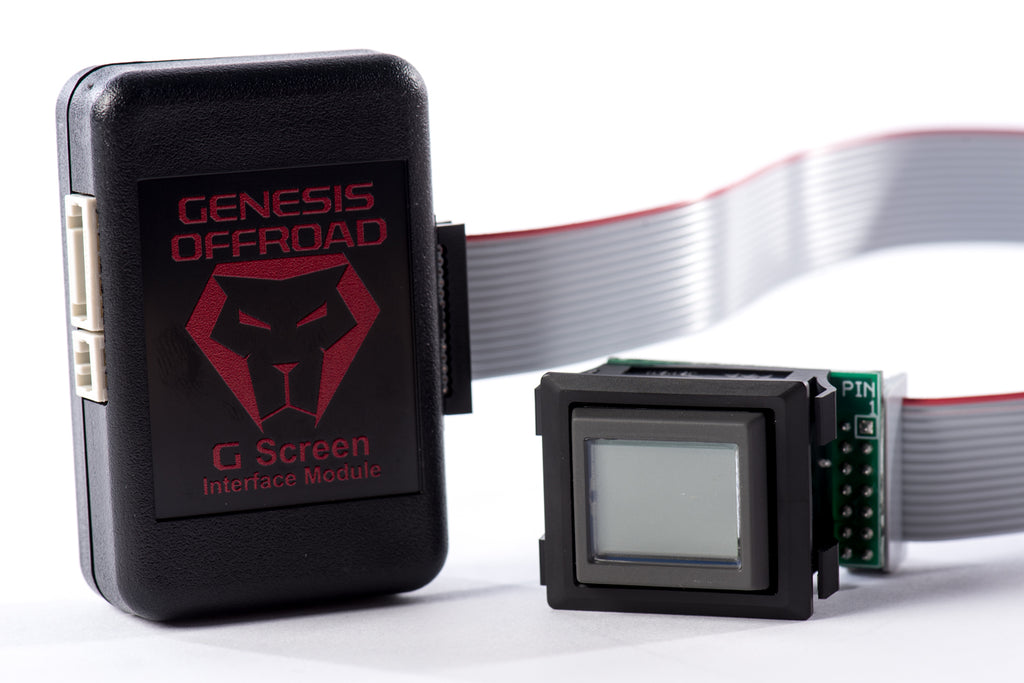

Kit Contents:

  • G Screen
  • Interface Module
  • Ribbon Cable
  • Wire Harness
  • Panel Cutout Template


Screen measures approximately one cubic inch. Compact size makes it easy to mount anywhere.
Includes a 13 foot wiring harness for simple, clean installation
Software upgradeable for future features
